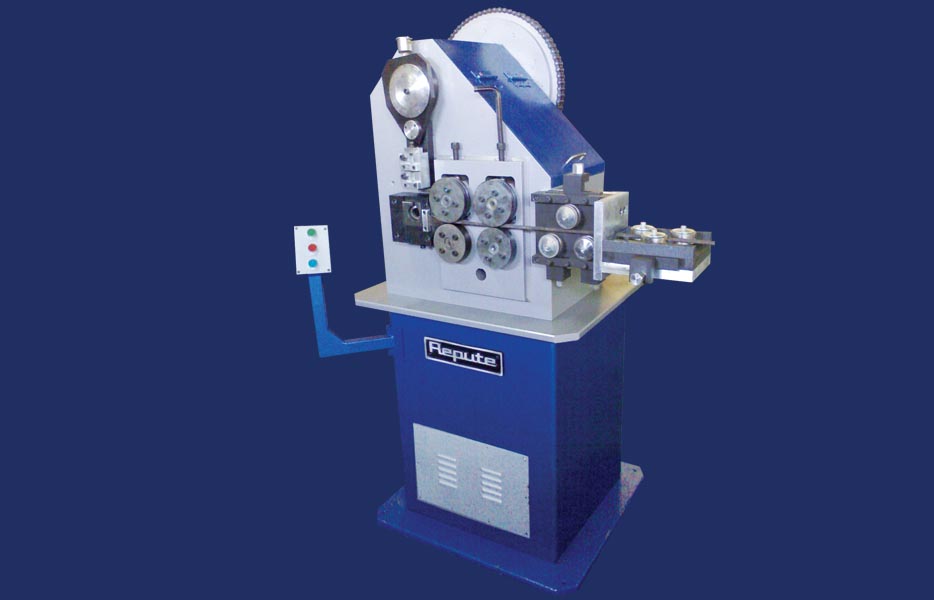

Spring Washer Machine

Full Localisation Support M3 to M5 M6 to M10 M10 to M14 M16 to M20
See Features
This automatic machine is capable of producing M12 washer with a production speed of 125pcs/min. Washer forming die is machined in a way to minimize the setting time. Precise Roller One way clutch is provided to ensure accurate feeding. An AC Drive is provided for speed varying. The feed length can be varied by a setting screw on a load wheel located on the back side of the machine.

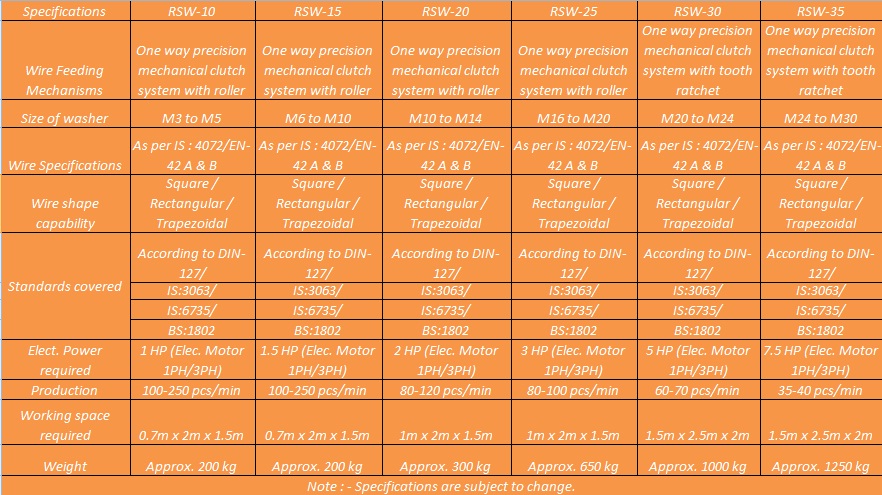

Specification
Specification
Work Demonstration Of Spring Washer Machine

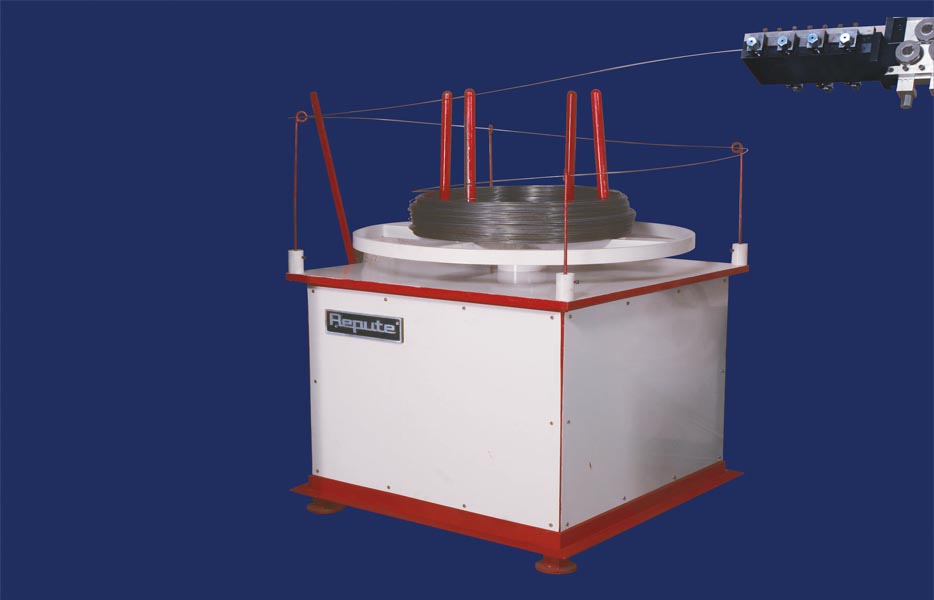

Wire Decoiler Machine

Full Localisation Support Feature1 Feature2 Feature3 Feature4
See Features
This machine is for supplying wire to other wire processing machine. The machine is equipped with sensor to detect the need of wire by processing machine. When excess wire is provided the machine automatically stops to prevent over supply. Optional VFD is provided to adjust the speed of decoiler for smooth operation.

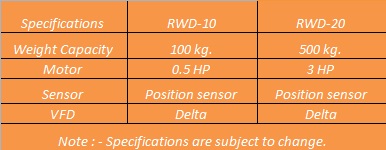

Specification
Specification
Work Demonstration Of Wire Decoiler Machine

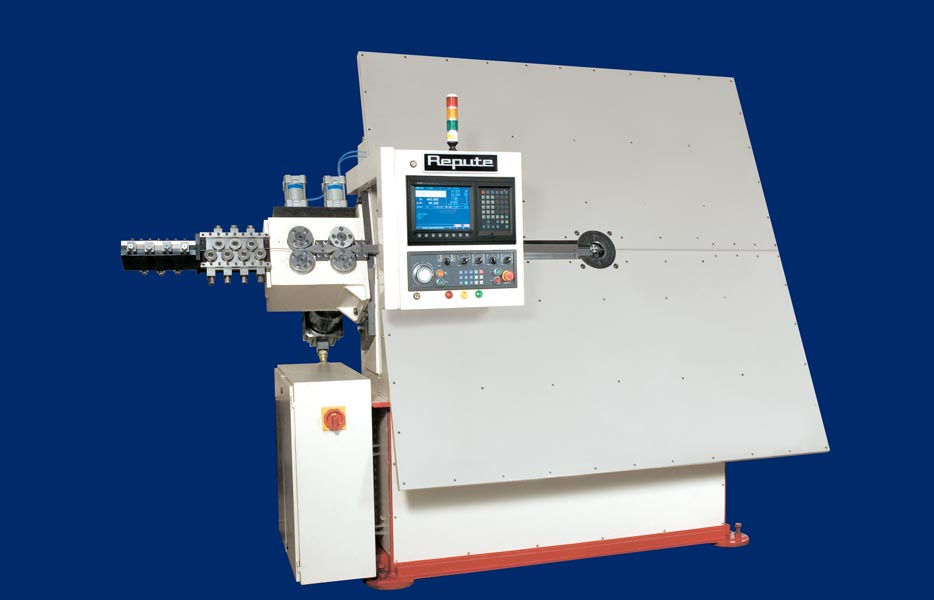

2D CNC Wire Bending Machine

Full Localisation Support Feature 1 Feature 2 Feature 3 Feature 4
See Features
A CNC machine for production of different types of wire bends. Any 2D wire bends at various angles and radius can be achieved. A simple programming language of CNC Controller enables easy programming of the part with conventional G and M codes. A desktop software provided with the machine is capable to convert drawing to machine language. Feeding and bending are CNC axis and wire cutting is accomplished with a hydraulic cutter. Pneumatic pressure over feed rolls assure uniform pressure. A wide base platform gives support to larger bending parts.

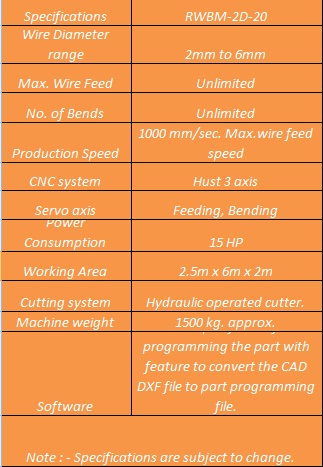

Specification
Specification
Work Demonstration Of 2D CNC Wire Bending Machine

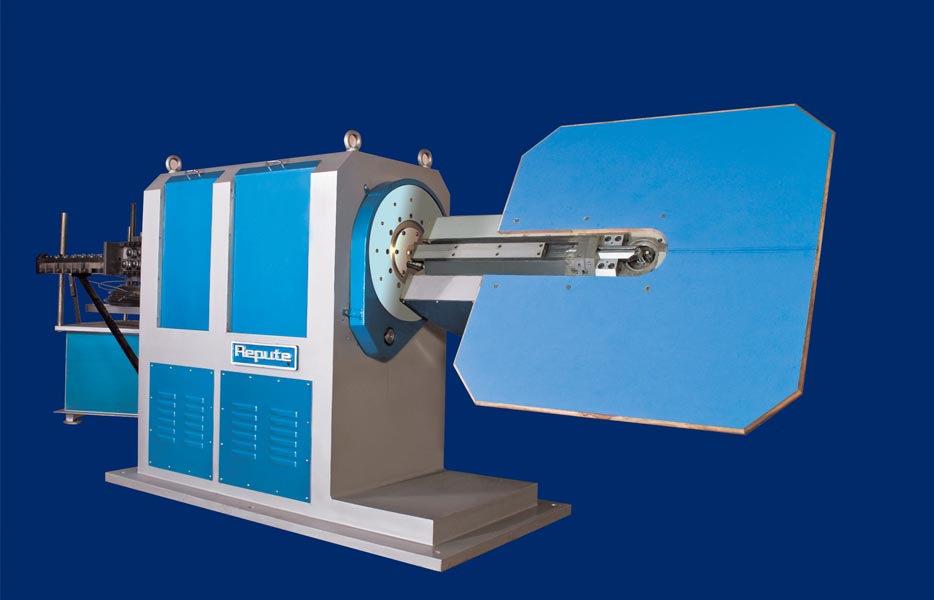

3D CNC Wire Bending Machine

Full Localisation Support Feature 1 Feature 2 Feature 3 Feature 4
See Features
A CNC machine for production of different types of wire bends. Any 3D wire bends at various angles and radius can be achieved. A simple programming language of CNC Controller enables easy programming of the part with conventional G and M codes. A desktop software provided with the machine is capable to convert drawing to machine language. Feeding, bending and indexing are CNC axis and wire cutting is accomplished with a hydraulic cutter. Pneumatic pressure over feed rolls assure uniform pressure. A wide base platform gives support to larger bending parts.

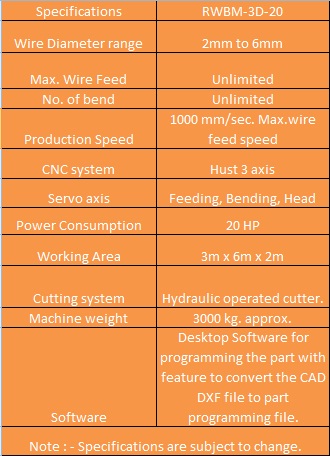

Specification
Specification
Work Demonstration Of 3D CNC Wire Bending Machine

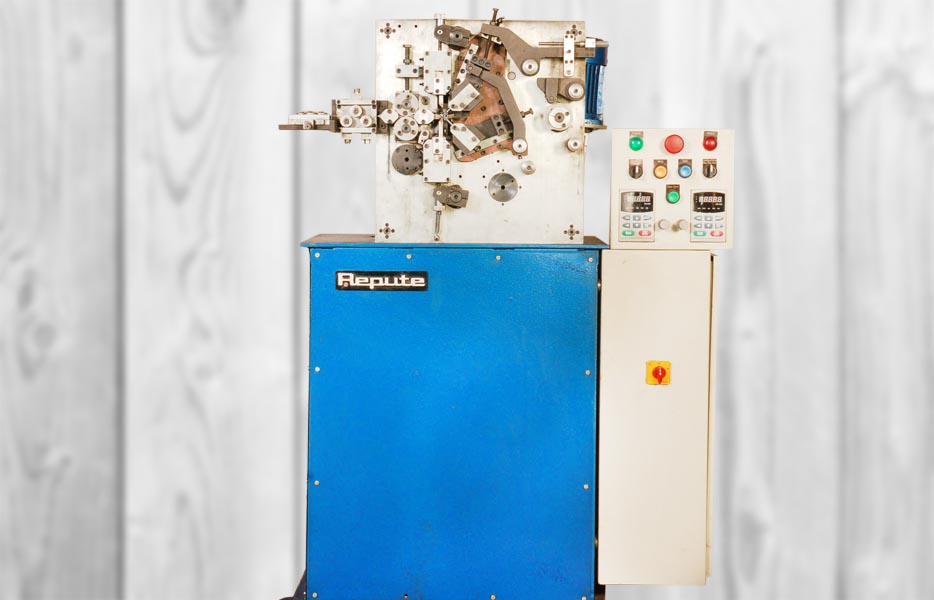

SPRING COILING MACHINE

Full Localisation Support Feature 1 Feature 2 Feature 3 Feature 4
See Features
THIS UNIVERSAL AUTOMATIC SPRING COILING MACHINE IS FOR THE FULLY AUTOMATIC PRODUCTION OF LEFT/RIGHT HAND COILED SPRINGS OF THE COMPRESSION OR TENSION TYPE, WITH CLOSED END COILS, CYLINDRICAL TAPERED OR DOUBLE TAPERED AND OTHER SHAPED SPRING. PRESSURE ON THE WIRE IS ADJUSTED BY MANUAL SCREWING OF INDIVIDUAL FEED ROLLS. A COMBINED SLIDE IS PROVIDED TO VARY THE DIAMETER OF SPRING WITH EASE. EASY SWITCHING OF LEFT/RIGHT HAND SPRING PRODUCTION. EASY SWITCHING OF PITCH OPENING FUNCTIONS. A SEPARATE CUTTING UNIT ENSURES EASY CUTTING OF WIRES OF LARGE WIRE DIAMETER. AN INCHING ARRANGEMENT IS PROVIDED FOR EASY SETTING OF THE MACHINE DURING INITIAL SETTING OPERATION. INDIVIDUAL CUTTING OPERATION ENABLES TO CUT THE WIRE FROM MIDDLE CYCLE OF SPRING TO ENSURE MINIMUM WASTAGE OF WIRE.

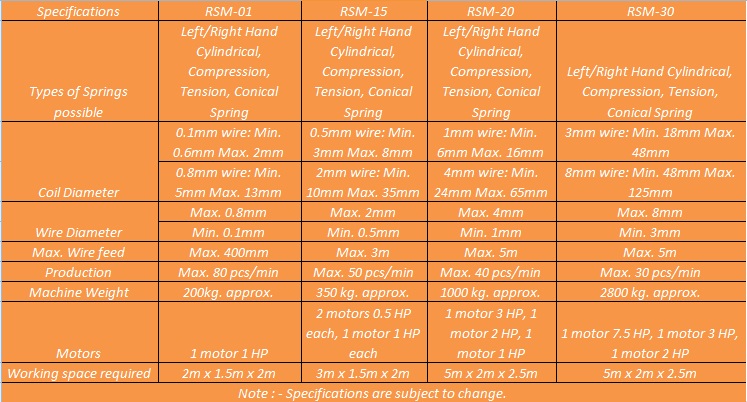

Specification
Specification
Work Demonstration Of SPRING COILING MACHINE

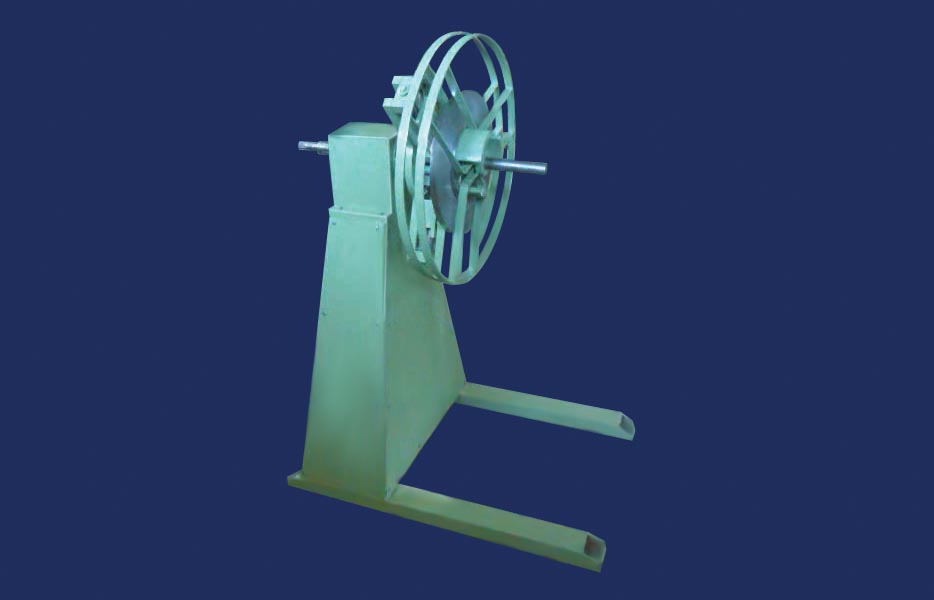

Strip Decoiler

Full Localisation Support Feature 1 Feature 2 Feature 3 Feature 4
See Features
This machine is for supplying strip to other strip processing machine. The machine is equipped with sensor to detect the need of strip by processing machine. When excess strip is provided the machine automatically stops to prevent over supply. Optional VFD is provided to adjust the speed of decoiler for smooth operation.

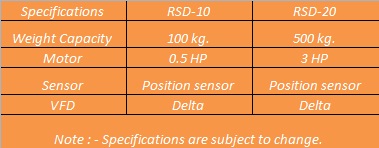

Specification
Specification
Work Demonstration Of Strip Decoiler

Full Localisation Support
See Features
Specification
Specification
Work Demonstration Of
